Details
KEY FEATURES:
- JR14 Coaster#Alloy 606
- Rigid Fork / HiTen
- Single Speed
- F: V-Brake R: Coaster
Your first cool bike. The SCOTT Roxter 14 will make you want to ride bikes for the rest of time!
Please note that bike specifications are subject to change without prior notice

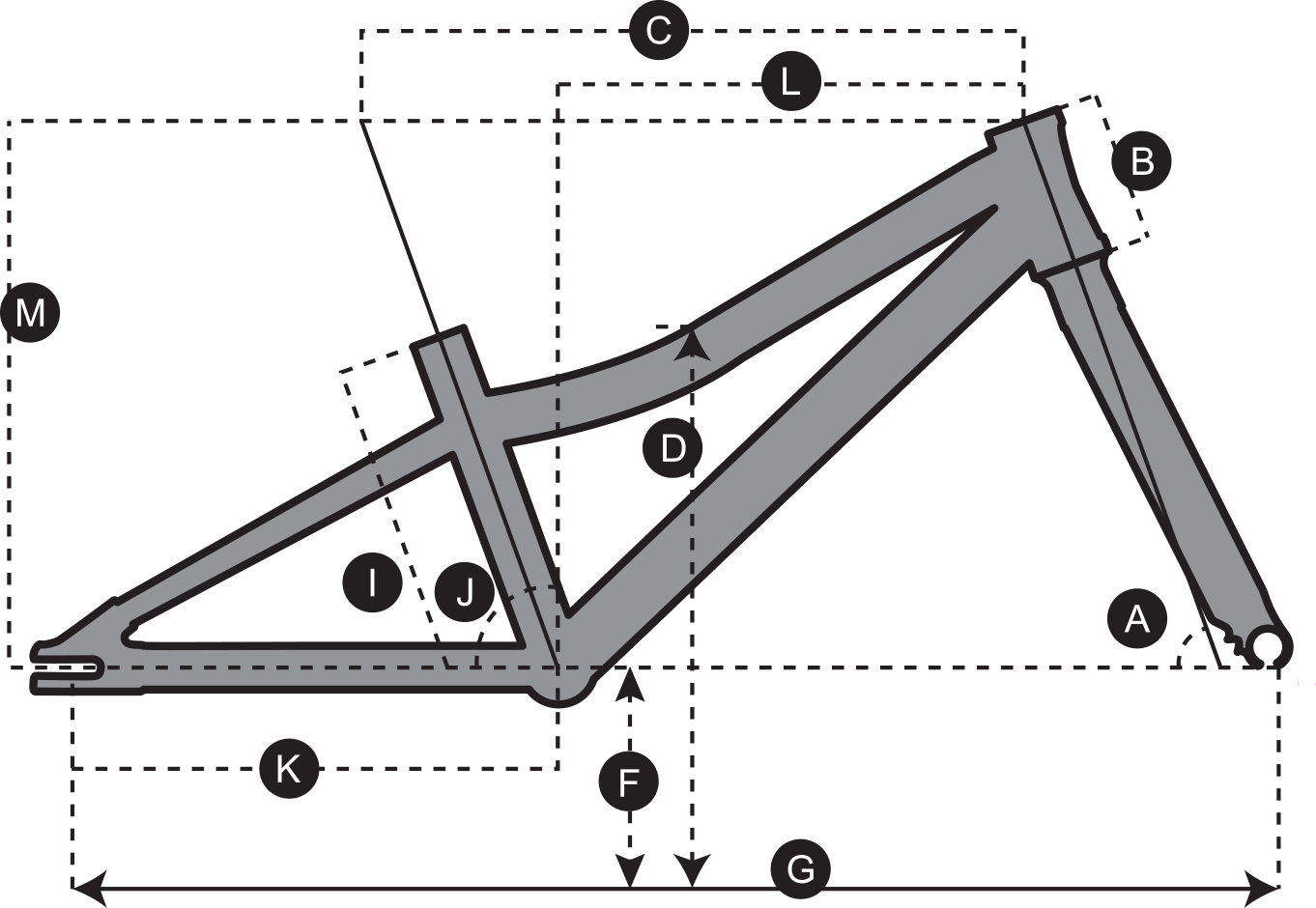

14" | ||
---|---|---|
A | Head Tube Angle | 70° |
B | Head Tube Length | 75.0mm |
C | Top Tube Horizontal | 330.0mm |
D | Standover Height | 388.2mm |
E | BB Offset | 10.0mm |
F | BB Height | 98.5mm |
G | Wheel Base | 627.7mm |
H | BB Center To Toptube Center | 140.0mm |
I | BB Center To Top Of Seattube | 190.0mm |
J | Seat Angle | 72° |
K | Chainstay | 260.0mm |
L | Reach | 235.9mm |
M | Stack | 289.5mm |
Specs
Frame | JR14 Coaster Alloy 6061, Bent TT Semi int. HT, Rigid Fork |
---|---|
Fork | BMX Type, rigid HiTen, 14", V-Brake Pivot |
Rims | Alloy, black, 16H, A/V |
Hubs |
Front: KT-183F, 20H, Nutted Rear: KT-305RB, 28H, Nutted Coaster brake |
Tires | Kenda K841 Contact, 14x2.125" |
Bottom Bracket | Steel, loose ball bearings |
Crankset | One Piece Crank, 28T |
Cassette/Freewheel | 18T |
Chain | KMC S1 |
Brakes | F: V-Brake R: Coaster |
Brake Levers | Kids Lever Alloy |
Handlebars | Junior mini riser bar 480mm |
Stem | Ahead, Alloy, 30mm, 25.4mm clamp |
Headset | Semi-integrated 1 1/8" |
Seatpost | Alloy 26.8x160mm |
Saddle | Syncros Roxter JR14 |
Pedals | MARWI SP-201, 1/2", w/reflector |
Accessories & Extras | Training wheels, full-chainguard |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Orange/Blue / 14-inch | 192820614496 | 286634222 | SCO24534861E |
