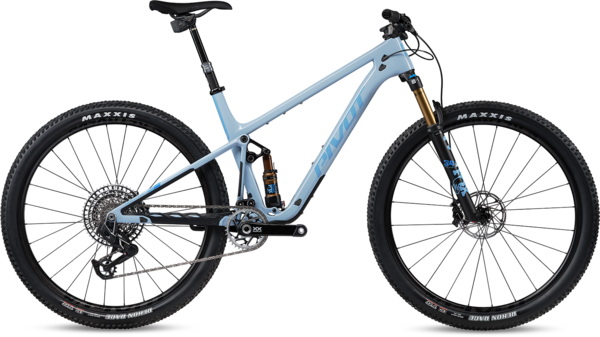

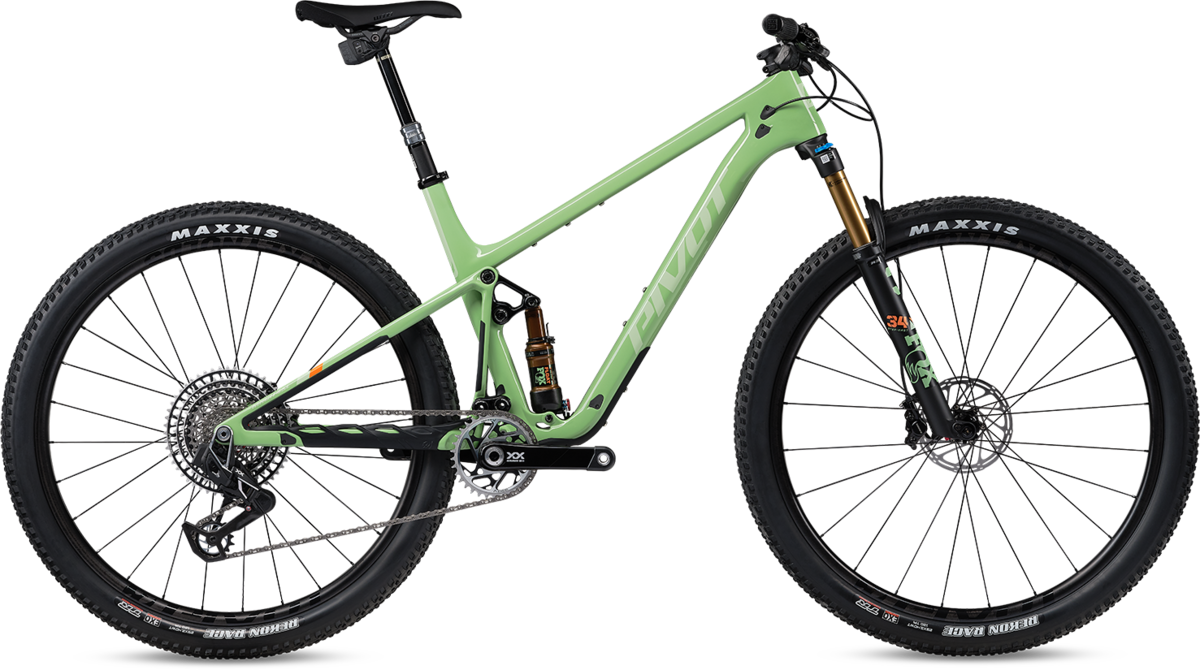

Pivot Cycles Mach 4 SL Team XX SL Eagle Transmission
Details
The all-new Mach 4 SL; a podium seeking missile crafted from the ground up as a testament to speed without compromise. Designed to win gold and slaughter KOMs, all while delivering an otherworldly ride quality, telepathic handling, and a potent blend of acceleration and tractability. The new Mach 4 SL features Flight Attendant and World Cup builds, for the fastest laps, with no compromises.
- XC-Tuned DW-Link™ Suspension
- New XC Adapted Travel-Adjustable Flip-Chip
- XC builds featuring Fox Factory, Performance or RockShox Flight Attendant with 106mm or 115mm adjustable rear travel paired with a 120mm fork
- World Cup Builds feature the efficient Fox Factory Float SL Shock with 95mm or 103mm adjustable travel paired with the ultra-light 100mm Fox Step Cast 32 fork
- RockShox Flight Attendant builds feature the cutting edge wireless smart suspension and AXS components to adapt for the best performance for your riding
- Lighter, More Durable High-Load Enduro Max bearings
- Size-Specific Carbon Layup Across Size Range
- Low Standover Fits Riders 4'10" to 6' 7"
- Large Water Bottle Clearance on All Sizes
- Pivot’s full carbon frames feature size-specific ride tuning, leading edge carbon fiber materials, and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'10" to 6'7" has a bike that feels perfect and performs at the optimum level for their size
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System
- Pivot Dock Tool System Compatible Under Top Tube and BB
- Simplified Twistloc Suspension Lockout (available on select builds)

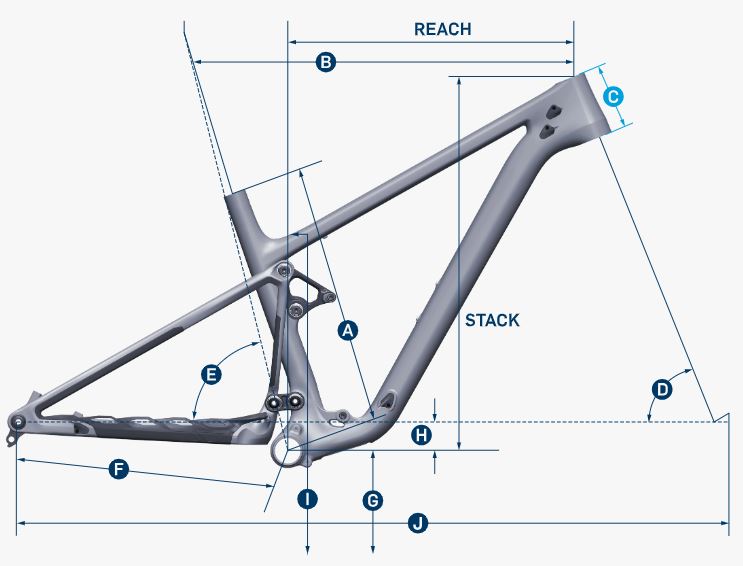

| 120mm Travel Fork | XS | SM | MD | LG | XL | |
|---|---|---|---|---|---|---|
| A | Set Tube Length (C-T) | 35.5 cm | 39.4 cm | 41.9 cm | 46.0 cm | 50.5 cm |
| B | Top Tube Length | 56.8 cm | 58.4 cm | 61.3 cm | 64.2 cm | 66.5 cm |
| C | Hed Tube Length | 8.5 cm | 9.0 cm | 10.5 cm | 12.0 cm | 13.5 cm |
| D | Hed Tube Angle | 66.7° | 66.7° | 66.7° | 66.7° | 66.7° |
| E | Set Tube ngle (Eff.) | 74.7° | 74.7° | 74.7° | 74.7° | 74.7° |
| F | Chainstay Length | 43.2 cm | 43.2 cm | 43.2 cm | 43.2 cm | 43.2 cm |
| G | Bottom Bracket Height | 33.6 cm | 33.6 cm | 33.6 cm | 33.6 cm | 33.6 cm |
| H | Bottom Bracket Drop | 3.8 cm | 3.6 cm | 3.6 cm | 3.6 cm | 3.6 cm |
| I | Stndover | 64.6 cm | 65.6 cm | 68.4 cm | 67.9 cm | 70.9 cm |
| J | Wheelbse | 111.1 cm | 112.8 cm | 115.9 cm | 118.9 cm | 121.5 cm |
| Rech | 39.7 cm | 41.2 cm | 43.7 cm | 46.2 cm | 48.2 cm | |
| Stck | 58.6 cm | 58.9 cm | 60.3 cm | 61.7 cm | 63.1 cm |
| 100mm Travel Fork | XS | SM | MD | LG | XL | |
|---|---|---|---|---|---|---|
| A | Seat Tube Length (C-T) | 35.5 cm | 39.4 cm | 41.9 cm | 46.0 cm | 50.5 cm |
| B | Top Tube Length | 56.5 cm | 58.0 cm | 60.9 cm | 63.8 cm | 66.2 cm |
| C | Head Tube Length | 8.5 cm | 9.0 cm | 10.5 cm | 12.0 cm | 13.5 cm |
| D | Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| E | Seat Tube Angle (Eff.) | 76.0° | 76.0° | 76.0° | 76.0° | 76.0° |
| F | Chainstay Length | 43.2 cm | 43.2 cm | 43.2 cm | 43.2 cm | 43.2 cm |
| G | Bottom Bracket Height | 32.7 cm | 32.9 cm | 32.9 cm | 32.9 cm | 32.9 cm |
| H | Bottom Bracket Drop | 4.7 cm | 4.5 cm | 4.5 cm | 4.5 cm | 4.5 cm |
| I | Standover | 63.7 cm | 64.4 cm | 67.2 cm | 66.8 cm | 69.8 cm |
| J | Wheelbase | 110.1 cm | 111.8 cm | 114.9 cm | 117.9 cm | 120.5 cm |
| Reach | 41.0 cm | 42.5 cm | 45.0 cm | 47.5 cm | 49.5 cm | |
| Stack | 57.7 cm | 58.0 cm | 59.4 cm | 60.8 cm | 62.2 cm |
| Frame Size | Rider Height (in) |
|---|---|
| X-Small | 4'10" - 5'4" |
| Small | 5'4" - 5'8" |
| Medium | 5'8" - 5'11" |
| Large | 5'11" - 6'2" |
| X-Large | 6' - 6'7" |
Specs
| Frame | Mach 4 SL |
|---|---|
| Fork | Fox Factory Stepcast 34 29", 44mm offset, GRIP SL - 120mm |
| Rear Shock | Fox Factory Float |
| Wheels | Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R |
| Tires | MAXXIS REKON 29X2.4 3C TR EXO 120TPI/Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI |
| Crankset | Sram XX SL Eagle DUB 34t |
| Shifters | Sram AXS Pod Ultimate Controller |
| Rear Derailleur | Sram XX SL Eagle AXS 12-Speed |
| Cassette/Freewheel | Sram XX SL 1299 10-52t |
| Chain | Sram XX SL Eagle 12-Speed Flat Top |
| Brakes | Sram Level Ultimate Stealth 2-piston |
| Rotors | Sram Centerline CenterLock - 160mm |
| Handlebars | Phoenix Team Flat Carbon - 760mm |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team XC/Trail - 60mm |
| Headset | Pivot Precision Sealed Integrated Cartridge |
| Seatpost | Rock Shox Reverb AXS 100mm (XS), 125mm (SM-LG), 150mm (XL) |
| Saddle | Phoenix WTB World Cup Volt Carbon Medium Width |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Ice Blue / Large / 29-inch | 196338181334 | 004SLV329CXXB--BICLGDRPYN | MAC29171228G |
