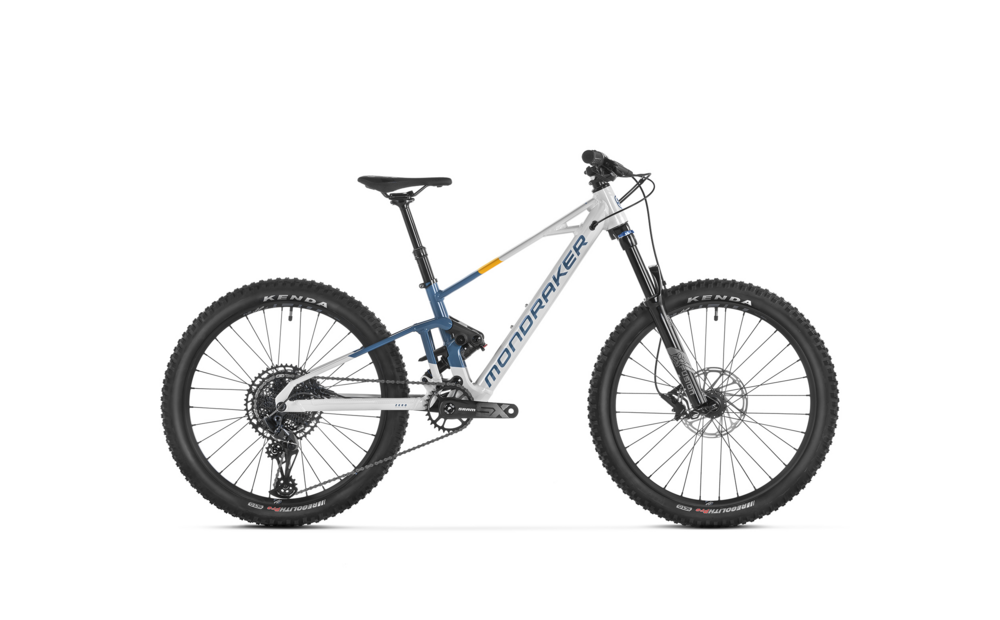

Mondraker F-Trick 24
This item is currently not available.
Details
The all-new F-Trick full suspension range, has so many things in common with the high-end adult bikes that we’re hard pressed to call it a kids bike. Forward Geometry, the Updated Zero Suspension System, 120mm and 130mm travel, dropper posts, 12x148mm drop-outs, 30mm stems, 4 piston brakes and 2.4” tyres. It’s enough to leave you out of breath. Picking up the baton from the old Factor range, the F-Trick comes in 24” and 26” flavours. As such the F-Trick 24” is perfect for kids from 8 to 11 years old (135-155cm) and the F-Trick 26” suits anyone from 10 to 14 years old (145-165cm).
| Frame size | One Size |
|---|---|
| Seattube length | 320 mm |
| Toptube length | 510 mm |
| Bottom bracket drop | -10 mm |
| Bottom bracket height | 280 mm |
| Chainstay length | 420 mm |
| Seat tube angle | 71º |
| Effective seattube angle | 76º |
| Headtube angle | 66º |
| Fork Offset | 41 mm |
| Wheelbase | 964 mm |
| Headtube length | 90 mm |
| Reach | 340 mm |
| Stack | 493 mm |
Specs
| Pedals | SDG Slater JR |
|---|---|
| Fork | Fork: X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
| Hubs | Front Hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts ; Rear Hub: DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub |
| Rims | Rims: MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Stem | Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Chain | Chain: Sram SX Eagle, 12s, Powerlock |
| Frame | Frame: F-Trick 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, 12x148mm rear axle, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design. 26” wheelset compatible |
| Tires | Front Tire: Kenda Regolith 24x2.4 120TPI, folding TLR ; Rear Tire: Kenda Regolith 24x2.4 120TPI, folding TLR |
| Brakes | Front Brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad ; Rear Brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Saddle | Saddle: SDG Fly JR |
| Spokes | Spokes: CN round stainless steel |
| Headset | Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Crankset | Crankset: Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm |
| Seatpost | Seatpost: Onoff Pija dropper internal, diameter 31.6x100mm |
| Shifters | Shift Levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Chainrings | Rings: 30T, steel, X-Sync |
| Handlebars | Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Tape/Grips | Grips: Onoff Twin, 1lock-on |
| Brake Levers | Brake Lever: Sram Level, tooled reach adjust, lever pivot bushings |
| Bottom Bracket | Bottom Bracket: Sram DUB BSA, sealed bearings, 73mm |
| Rear Derailleur | Rear Derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Cassette/Freewheel | Cassette: Sram PG-1230, 11-50T, 12s |
* Subject to change without notice.
