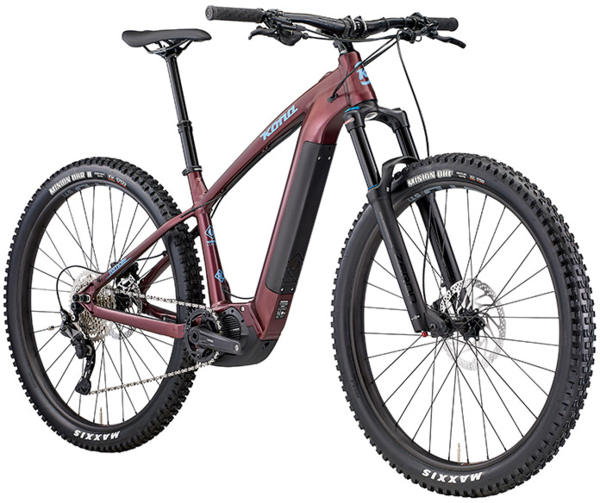

The Remote has become the veteran of the Kona e-MTB lineup. It's been a top choice for trail builders, backwoods explorers and sportsmen of all kinds. Derived from the Honzo, its frame brings a sporty version to the masses that holds a smooth-operating Shimano battery and motor. 140mm of front suspension keeps the technical terrain at bay. A 10-speed drivetrain provides reliable shifting while hydraulic disc brakes keep the speed in check. The Remote is sporty, practical, and perhaps the perfect way to dip your toe into the eBike waters!
KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing's wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame's strength and ride characteristics depending on its intended application.
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.
TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted.
|Seat Tube Length (mm)||385||410||450||485|
|Top Tube Length (mm)||585||611||639||676|
|Head Tube Angle||66°||66°||66°||66°|
|Head Tube Length (mm)||115||120||130||140|
|Seat Tube Angle||76.1°||76.1°||76.1°||76.1°|
|Chainstay Length (mm)||435||435||435||435|
|Bottom Bracket Drop (mm)||55||55||55||55|
|Bottom Bracket Height (mm)||320||320||320||320|
|Front Center (mm)||744||771||800||839|
|Fork Length (mm)||551||551||551||551|
|Fork Offset (mm)||51||51||51||51|
|Frame Size||Height (inches)||Height (cm)||Inseam (inches)||Inseam (cm)|
Due to supply-chain issues, Specs are subject to change without notice.
|Frame||Kona 6061 Aluminum Butted|
|Fork||Suntour Zeron35 140mm Tapered 110 Spacing|
|Rims||WTB ST i35 TCS 2.0|
Front: Shimano 110x15mm
Rear: Shimano 148x12mm
|Spokes||Stainless Black 14g|
Front: Maxxis Minion DHF EXO TR DUAL 29x2.6"
Rear: Maxxis Minion DHR II EXO TR DUAL 29x2.4" WT
|Rear Derailleur||Shimano Deore|
|Cassette/Freewheel||Shimano Deore 11-46t 10spd|
|Brakes||Shimano MT410 Hydraulic|
Front: Shimano RT30 203mm
Rear: Shimano RT30 180mm
|Brake Levers||Shimano MT410 Hydraulic|
|Handlebars||Kona XC/BC 35|
|Tape/Grips||Kona Key Grip|
|Stem||Kona XC/BC 35|
|Seatpost||TranzX Dropper Internal 31.6mm|
|Motor||Shimano E7000 20MPH|
|Controller/Display||Shimano SC-E7000 Display|
|Charger||Shimano STEPS 2A|
* Subject to change without notice.
|Satin Metallic Mauve/Blue-Gray / X-Large||841073146857||B22RE06||REM26294532L|
